Linked Electronics Co., Limited One Stop PCB solution Provider
6 Years
| Ask Lasest Price | |
| Brand Name : | Linked |
| Model Number : | LPCB1099 |
| Certification : | IPC Member, UL, TS16949, ISO14001, |
| Price : | by negotiation |
| Payment Terms : | Paypal, T/T, Western Union, |
| Supply Ability : | 10, 000sqm per month |
| Delivery Time : | 5 working days |

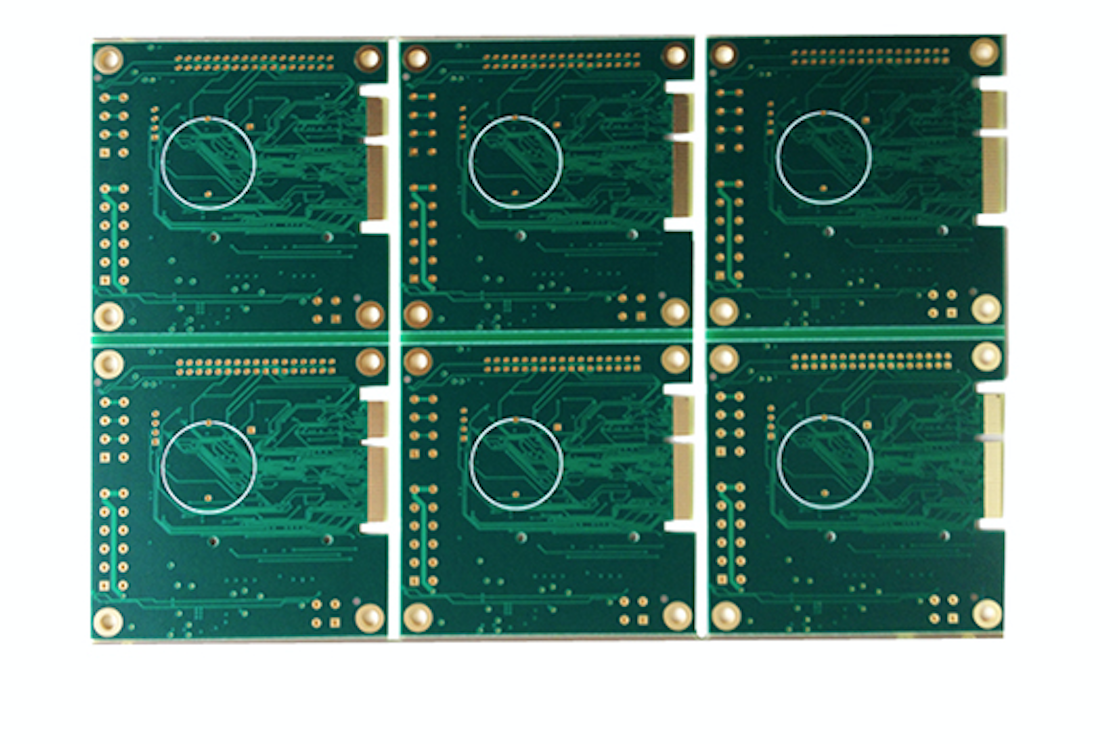

FR4 PCB Board Electronic PCB Board with Gold Finger Hard Gold Circuit Board
Linked electronics is an OEM manufacturer that focus on PCB&PCBA manufacturing for 2 decades.We are able to manufacture pcb ranging from basic single sided boards up to 22 layer multilayers and provide one stop turnkey services, including pcb manufacture, assembly, components source, function testing services and so on.
Our Service
PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )
FPC,PCB Copy Service.
PCBA Housing assembly serivce.
PCB Assembly Service. (SMT, BGA, DIP)
PCBA Final Functional Testing.
PCBA Copy Service.
Electronic Components Purchasing & BOM List Purchasing Services.
PCB SMT Stencil. (Laser cut & Etching)
You can obtain price quote on our website, or contact sales@linked-elec.com
As a part of our constant efforts toward improvement, we welcome your feedback.
Linked Electronics. is all about delivering your printed circuit boards and assemblies on time, and providing excellent quality.
We appreciate your business, and look forward to serving you.
Our Capability
| Item | Capability | Remark | |||||
| Layer count | 2~30 layer | ||||||
| Lamination | FR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect | ||||||
| Thickness (THK) | 0.2mm≤THK≤6.0mm | ||||||
| Smallest hole (mm) | 0.15mm | ||||||
| Aspect Ratio | 13:1 | ||||||
| Max dimension | Single or 2-layer | 600 x 1000 mm | |||||
| Multi-lyr | ≤6L | 600 x 900 mm | |||||
| ≥8L | 500 x 600 mm | ||||||
| Gold THK | Hard Gold (u") | 50u" | |||||
| Immersion Gold (u") | 4u" | ||||||
| Copper THK | Outer (oz) | 6oz | |||||
| Inner (oz) | 6oz | ||||||
| Smallest trace width / space (mil) | 3/3 mil | ||||||
| Annual ring | Via hole | 3mil | |||||
| Component hole | 6mil | ||||||
| Copper to edge spacing | 0.25mm | ||||||
| Min trace width / space (mil) | Base Copper (oz) | Min trace width / space (mil) | |||||
| 0.5 | 3/3 | ||||||
| 1 | 4/4 | ||||||
| 2 | 5/5 | ||||||
| 3 | 7/7 | ||||||
| 5 | 9/9 | ||||||
PCB Process Flow

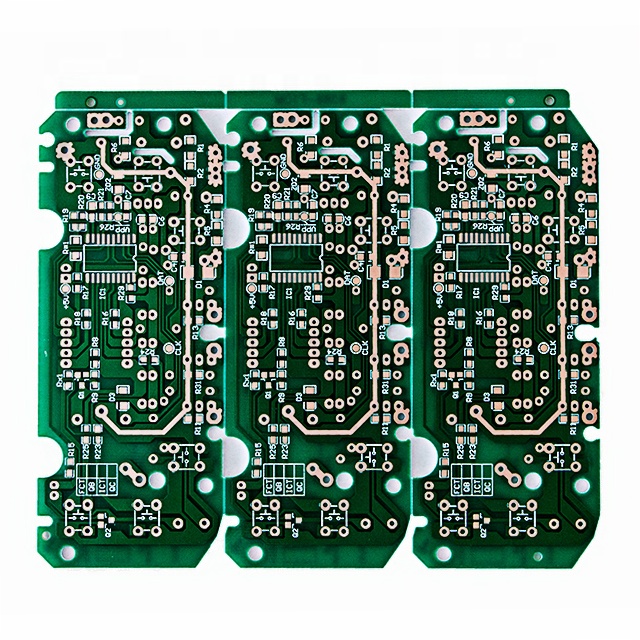

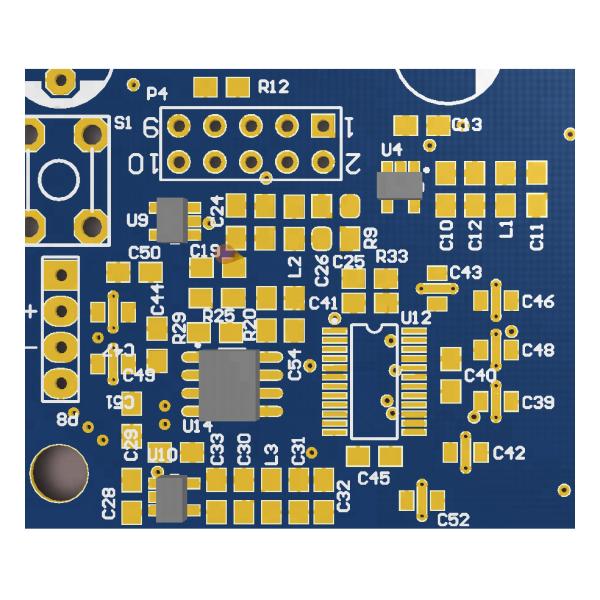

Product Display
|
|
