    Custom Design Metal Core Aluminum PCB Board Fast Delivery 2.0W Thermal Conductivity

    Custom Design Metal Core Aluminum PCB Board Fast Delivery 2.0W Thermal Conductivity


    Aluminium PCB


    1. Aluminium PCB Circuit Layer
    The circuit layer (commonly used electrolytic copper foil) is etched to form the printed circuit, Compared to FR4 material, Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.
    2. Aluminium PCB Insulating Layer /Dielectic Layer
    The insulating layer is the core technology of the Aluminium PCB, which mainly serves as the function of adhesion, insulation and heat conduction.
    The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power.
    Linked Electronics has rich experience in manufacturing aluminium PCB with high thermal conductivity.

    3. Aluminium PCB Metal Base Layer
    Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc.
    If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.

    Our Capability


    ItemCapabilityRemark
    Layer count2~30 layer
    LaminationFR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect
    Thickness (THK)0.2mm≤THK≤6.0mm
    Smallest hole (mm)0.15mm
    Aspect Ratio13:1
    Max dimensionSingle or 2-layer600 x 1000 mm
    Multi-lyr≤6L600 x 900 mm
    ≥8L500 x 600 mm
    Gold THKHard Gold (u")50u"
    Immersion Gold (u")4u"
    Copper THKOuter (oz)6oz
    Inner (oz)6oz
    Smallest trace width / space (mil)3/3 mil
    Annual ringVia hole3mil
    Component hole6mil
    Copper to edge spacing0.25mm
    Min trace width / space (mil)Base Copper (oz)Min trace width / space (mil)
    0.53/3
    14/4
    25/5
    37/7
    59/9

    The PCB fabrication Process Flow

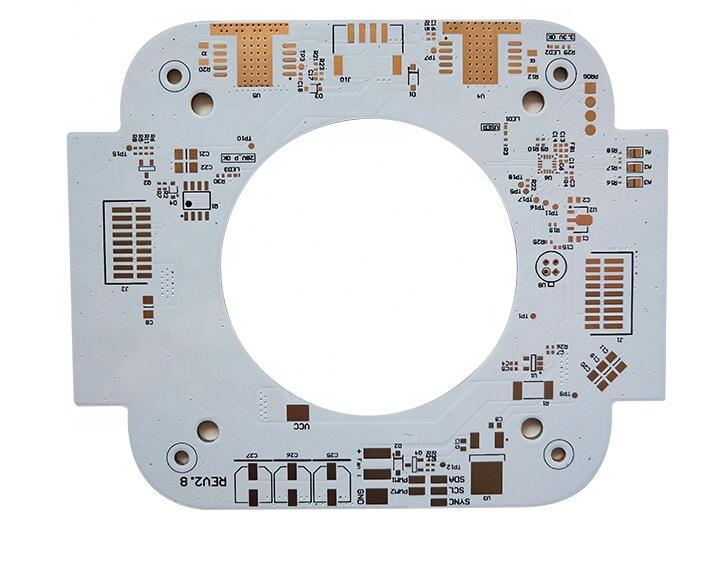

    AL PCB Picture Show
