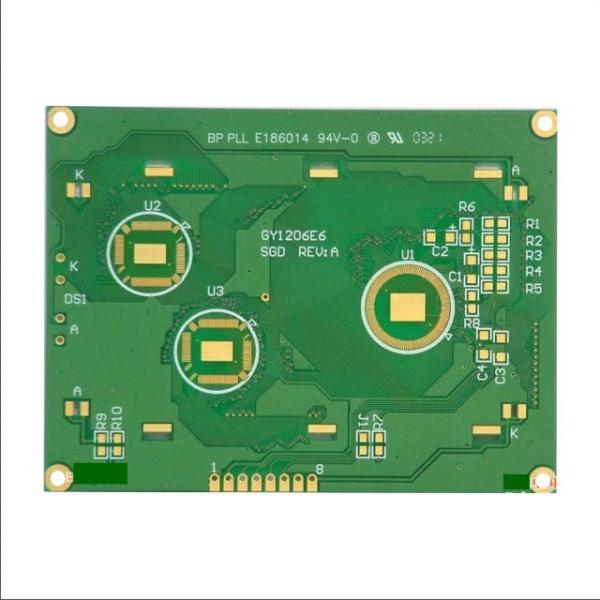

    Quick Turn Automotive PCB FR4 Green Soldermask GPS 1oz Copper Thickness

    Ask Lasest Price
    Brand Name : Linked
    Model Number : LPCB1123
    Certification : IPC Member, UL, TS16949, ISO14001,
    Price : by negotiation
    Payment Terms : Paypal, T/T, Western Union,
    Supply Ability : 10, 000sqm per month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Quick Turn Automotive PCB FR4 Green Soldermask GPS 1oz Copper Thickness


    Automotive PCB FR4 Green Soldermask GPS 1oz Copper thickness HAL Rohs Quick Turn PCB


    Linked Electronics focuses on PCB&PCBA manufacturing over 20 years which is able to support with the whole process from PCB manufacturing, component procurement to PCB assembly.


    Since 1998, we have been serving the electronics industry with printed circuit boards and assembly services across the China and globally. Our business is to manufacture boards from 2 to 32 layers, provide quick turn consigned and full turn-key assemblies.


    PCB Circuit Board Description


    PCB NameAutomotive PCB
    The number of layers2~32 Layer
    MaterialFR4
    The finished copper thickness1~6OZ
    Solder mask colorGreen
    SilkscreenWhite
    Surface treatmentHAL Rohs

    Our Advantages


    1. High Capability and good management

    Linked Electronics can meet all your PCB manufacturing needs from single-sided to complex multi-layered PCB’s and everything in between. Our stringent quality standards are imposed by our trained staff with traceability of PCB’s throughout the production process. Our Management Team has over 15+ years of PCB experience which ensures we get the job done right.
    2.Fast Lead time
    Linked Electronics have a consistent on–time shipping record and we are now shipping many of our orders early!
    3. Good Service
    At Linked we are committed to giving you personal Customer EXCELLENCE not just Customer Service! When you call, we answer. When you email, we respond.
    4. Quick Turn-around Service
    Prototype of 2 Layer can be finished within the working day, and 4 layer in 48 hours at Linked Electronics.
    5. Free Sample
    For first time customers can receive first prototype for free by some restrictions applies. You will not be anxious about the potential risk because of initial cooperation.
    6. No MOV

    Linked Electronics don’t have any minimum lot requirements, so you never have to buy more than what you need.

    Our Capability


    ItemCapabilityRemark
    Layer count2~30 layer
    LaminationFR-4,Aluminum Based,Copper based,High frequency plate,Heavy copper,BT,Rogers,PTFE ect
    Thickness (THK)0.2mm≤THK≤6.0mm
    Smallest hole (mm)0.15mm
    Aspect Ratio13:1
    Max dimensionSingle or 2-layer600 x 1000 mm
    Multi-lyr≤6L600 x 900 mm
    ≥8L500 x 600 mm
    Gold THKHard Gold (u")50u"
    Immersion Gold (u")4u"
    Copper THKOuter (oz)6oz
    Inner (oz)6oz
    Smallest trace width / space (mil)3/3 mil
    Annual ringVia hole3mil
    Component hole6mil
    Copper to edge spacing0.25mm
    Min trace width / space (mil)Base Copper (oz)Min trace width / space (mil)
    0.53/3
    14/4
    25/5
    37/7
    59/9

    Raw Material Supplier
