Linked Electronics Co., Limited One Stop PCB solution Provider
6 Years
| Ask Lasest Price | |
| Brand Name : | Linked Electronics |
| Model Number : | LPCB1053 |
| Certification : | UL, TS16949, ISO14001, ISO9001 |
| Price : | by negotiation |
| Payment Terms : | T/T, Western Union,Paypal |
| Supply Ability : | 10, 000sqm per month |
| Delivery Time : | 5 working days |
| MOQ : | 1 PCS |

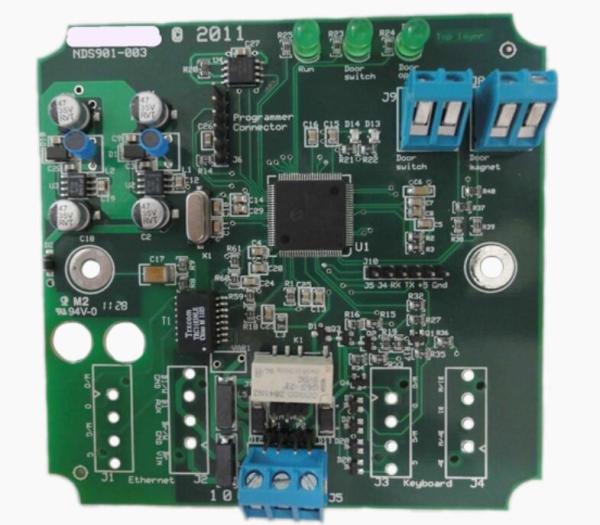

High Quality ROHS FR4 94V0 Multilayer PCB Electronic Assembly Main PCBA Circuit Board manufacturer
Linked Electronics is a China based PCB manufacturer with full in house manufacturing capabilities, which specialized in high-mix, prototype, low volume and quick turn PCB and PCBA service.
Our Advantage
1. High Capability and good management
Linked Electronics can meet all your PCB and PCBA manufacturing needs from single-sided to complex multi-layered PCB’s and everything in between. Our stringent quality standards are imposed by our trained staff with traceability of PCB’s throughout the production process. Our Management Team has over 15+ years experience which ensures we get the job done right.
2. Fast Lead time
Linked Electronics have a consistent on–time shipping record and we are now shipping many of our orders early!
3. Quick Turn-around Service
Prototype of 2 Layer can be finished within the working day, and 4 layer in 48 hours at Linked Electronics.
4. Good Service
At Linked we are committed to giving you personal Customer EXCELLENCE not just Customer Service! When you call, we answer. When you email, we respond.
5. Free Sample
For first time customers can receive first prototype for free by some restrictions applies. You will not be anxious about the potential risk because of initial cooperation.
6. No MOV
Linked Electronics don’t have any minimum lot requirements, so you
never have to buy more than what you need.
Assembly Capability
| Item | Lot Size | ||||
| Normal | Special | Remark | |||
| PCB(used for SMT)spec | (L*W) | Min | L≥50mm | L＜50mm | Includes the Process Edge |
| W≥50mm | |||||
| Max | L≤460mm | L ＞ 460mm | |||
| W≤400mm | W＞ 400mm | ||||
| (Thickness) | Min thickness | 0.5mm | T＜0.5mm | ||
| Max thickness | 4.5mm | T＞4.5mm | |||
| SMT components spec. | dimension | Min size | 201 | 1005 | / |
| (0.6mm*0.3mm) | (0.3mm*0.2mm) | ||||
| Max size | 200mm*125mm | 200mm*125mm＜SMD | / | ||
| component thickness | T≤6.5mm | 6.5mm＜T≤15mm | / | ||
| QFP,SOP,SOJ(multipins) | Min pin space | 0.4mm | 0.3mm≤Pitch＜0.4mm | / | |
| CSP,BGA | Min ball space | 0.5mm | 0.3mm≤Pitch＜0.5mm | / | |
| Item | Prototype Manufacturer | ||||
| Normal | Special | Remark | |||
| SMT PCB SPEC | (L*W) | Min size | L≥50mm | L＜50mm | Includes the Process Edge |
| W≥30mm | |||||
| Max size | L≤450mm | L:800-450mm | |||
| W≤350mm | W:400-350mm | ||||
| (Thickness) | Minimum thickness | 0.8mm | T＜0.8mm | ||
| Maximum Thickness | 2mm | T＞2mm | |||
| DIP PCB SPEC | (L*W) | Min Size | L≥50mm | L＜50mm | |
| W≥30mm | |||||
| Max Size | L≤500mm | L≥500mm | |||
| W≤300mm | W≥300mm | ||||
| (Thickness) | Minimum Thickness | 0.8mm | T＜0.8mm | ||
| Maximum Thickness | 2mm | T＞2mm | |||
|
|
