Linked Electronics Co., Limited One Stop PCB solution Provider
6 Years
| Ask Lasest Price | |
| Brand Name : | Linked Electronics |
| Model Number : | LPCB1178 |
| Certification : | UL, TS16949, ISO14001, ISO9001 |
| Price : | by negotiation |
| Payment Terms : | T/T, Western Union,Paypal |
| Supply Ability : | 10, 000sqm per month |
| Delivery Time : | 5 working days |

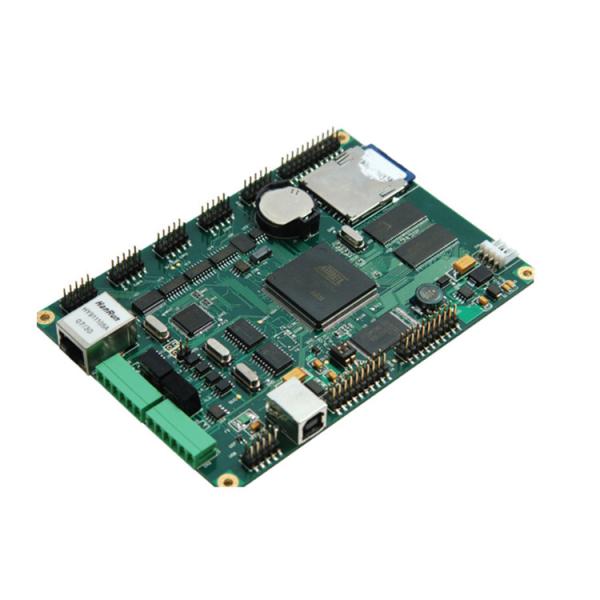

PCB Assembly Services Quick Turn for Mobile Phone Main Board FR4 PCB
Welcome to Linked Electronics( One stop PCB solution service provider)
Linked Electronics has been manufacturing a wide range of high quality PCBs since 1998. We can meet your requirement of PCB prototype, or a complex, high volume PCB production. We provide high quality services to the electronic industries globally.
PCB Assembly Service Capability
| Item | Lot Size | ||||
| Normal | Special | Remark | |||
| PCB(used for SMT)spec | (L*W) | Min | L≥50mm | L＜50mm | Includes the Process Edge |
| W≥50mm | |||||
| Max | L≤460mm | L ＞ 460mm | |||
| W≤400mm | W＞ 400mm | ||||
| (Thickness) | Min thickness | 0.5mm | T＜0.5mm | ||
| Max thickness | 4.5mm | T＞4.5mm | |||
| SMT components spec. | dimension | Min size | 201 | 1005 | / |
| (0.6mm*0.3mm) | (0.3mm*0.2mm) | ||||
| Max size | 200mm*125mm | 200mm*125mm＜SMD | / | ||
| component thickness | T≤6.5mm | 6.5mm＜T≤15mm | / | ||
| QFP,SOP,SOJ(multipins) | Min pin space | 0.4mm | 0.3mm≤Pitch＜0.4mm | / | |
| CSP,BGA | Min ball space | 0.5mm | 0.3mm≤Pitch＜0.5mm | / | |
| Item | Prototype Manufacturer | ||||
| Normal | Special | Remark | |||
| SMT PCB SPEC | (L*W) | Min size | L≥50mm | L＜50mm | Includes the Process Edge |
| W≥30mm | |||||
| Max size | L≤450mm | L:800-450mm | |||
| W≤350mm | W:400-350mm | ||||
| (Thickness) | Minimum thickness | 0.8mm | T＜0.8mm | ||
| Maximum Thickness | 2mm | T＞2mm | |||
| DIP PCB SPEC | (L*W) | Min Size | L≥50mm | L＜50mm | |
| W≥30mm | |||||
| Max Size | L≤500mm | L≥500mm | |||
| W≤300mm | W≥300mm | ||||
| (Thickness) | Minimum Thickness | 0.8mm | T＜0.8mm | ||
| Maximum Thickness | 2mm | T＞2mm | |||
Linked aims to build a strong customer satisfaction community. We always work to maintain good relations with our customers by manufacturing custom PCBs as per their requirements. At every given opportunity, we put our sincere efforts to fulfill all customer's requirements.
It is most profitable to choose Linked for your PCB requirements as we supply:
Our Service includes
1. PCB design ,PCB clone and copy ,ODM service.
2. Fast PCB&PCBA prototype and Mass Production
3. Electronic Components Sourcing Services
4. PCB Assembly Services:SMT,DIP&THT,BGA repair and reballing
5. Stencil
6. Standard Packing and On time Delivery
Look forward to your RFQs and we are always pleased to hear from you!!
FAQ
Q1: How do you make sure the quality of the PCBs?
A1: Our PCBs are all 100% test including Flying Probe Test, E-test or
AOI.
Q2: What is the lead time?
A2: Sample needs 2-4 working days, mass production needs 7-10 working days. It depends on the files and quantity.
Q3: Can I get the best price?
A3: Yes. To help customers control cost is what we are always trying to
do. Our engineers will provide the best design to save PCB material.
Q4: What files should we provide for a customized order?
A4: If only need PCBs, the Gerber files are needed; If need PCBA, both
Gerber files and BOM are needed;If need PCB design,all requirement
details are needed.
Q5:Can I get a free sample?
A5:Yes, Welcome to experience our service and quality.you need make the payment at first,and we will return the sample cost when your next bulk order.
|
|
