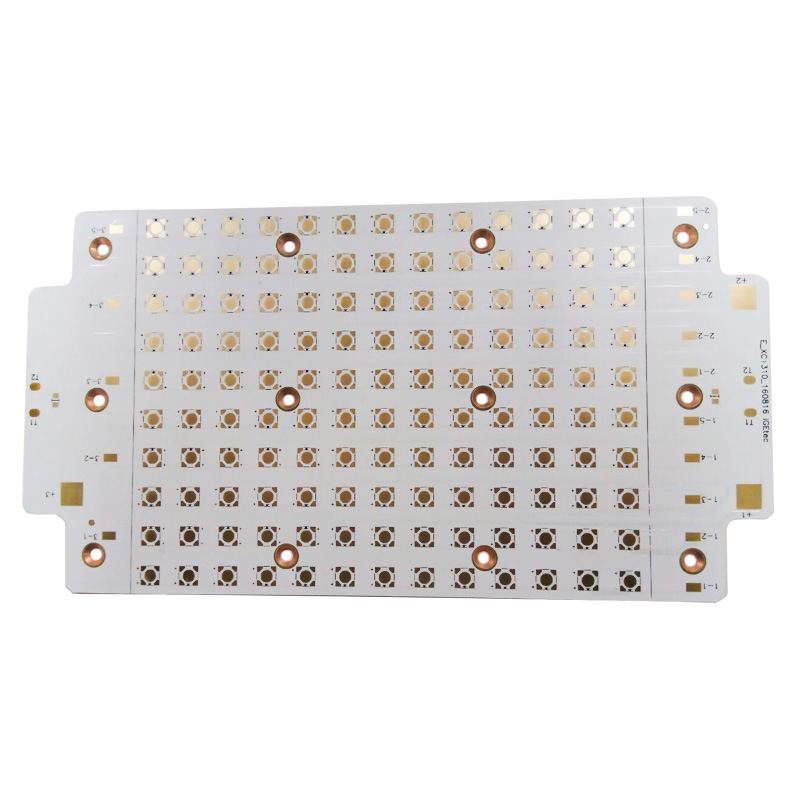

OEM Rigid FR4 PCB Board SMT LED Aluminum Printed Circuits 4 Layer 70um Copper
Founded in 1998, Linked Electronics specializes in 2-32Layers PCB prototype fabrication, quick turn and high-mixed PCB production. At our facility, linked has very strict manufacturing standards, such as advanced production technology, high quality raw materials, strict standardization of operating standards and QC standards for incoming and outgoing materials.
No matter what type of PCBs, single sided PCB, double sided PCB or multilayer PCB, they have to go through similar quality inspection methods and process. Quality inspection for PCB boards usually includes visual inspection, general electrical test, general technological performance inspection and metalized via inspection. All PCBs produced by Linked Electronics are 100% e-test.
With the inspection report, a solder sample and micro section report will be sent along with the PCBs. A solder sample is non-usable board that represents a usable PCB during test processes. It can be used to test virtually every process on the assembly line.
IPC-1752 RoHS Materials Declaration Standard
Rohs Compliance requires that Linked Electronics and all our raw materials suppliers understand the material composition of our products—from FR4 substrate, solder mask, silkscreen, copper ball, chemicals, to surface finish and finished boards will meet Rohs Compliant.
1. PCB Reverse Engineering
2. PCB drawing / design according to your schematic diagram
3. PCB manufacturing
4. Component sourcing
5. PCB Assembly and SMT service
6. PCBA 100% test
Linked Electronics looks forward to working with you and if you have any PCB or PCB SMT questions, contact our sales team today, sales@linked-elec.com
Lead Time of PCB Production
| Layer | Prototype | Mass Productions (above 30 m2 ) | |
| Quick Turn | Standard Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
| PCB Manufacturing Services Capability | |||
| Layers | 1-32 layers | Min. line width | 2mil |
Max.board size (single&doule sided) | 700*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish | HAL(with Pb free),plated Ni/Au, Immersion silver,Imm Ni/Au,Imm Sn, hard gold,OSP,ect | Min.board thickness(multilayer) | 4layers:0.4mm; 6layers:0.6mm; 8layers:1mm; 10layers:1.2mm |
| Board materials | FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); thick copper | Plating thickness (Technique: Immersion Ni/Au) | Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% | Distance between line to board edge | Outline: 0.2mm V-CUT: 0.4mm |
Base copper thickness(Inner and outer layer) | Min. thickness:1/3 OZ Max.thickness:6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers: Min.thickness 1 OZ, Max.thickness 10 OZ Inner layers: Min.thickness 0.5OZ, Max.thickness 6 OZ | Max.board thickness(single&doule sided) | 6mm |
