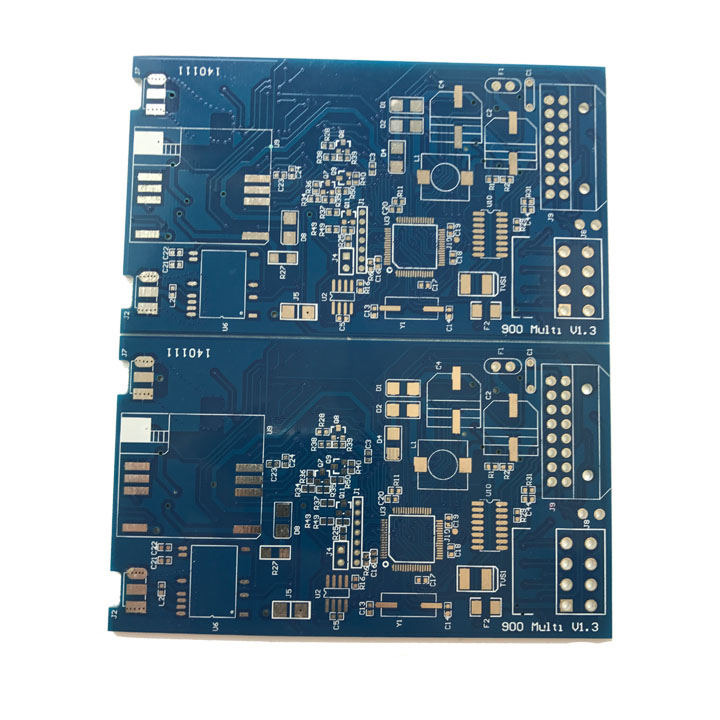

2 Layer FR4 TG 135 Blue Soldermask 1.6mm PCB Board 35um Copper HASL Lead Free
Linked Electronics Co., Limited is a PCB manufacture in China which focusing on PCB prototypes, high mix PCB production, aluminum PCB and quick turn PCB board.
The substrate most commonly used in printed circuit boards is a glass fiber reinforced (fiberglass) epoxy resin, that is FR4 material, with a copper foil bonded on to one or both sides. PCBs made from paper reinforced phenolic resin, that is CEM1, with a bonded copper foil are less expensive and are often used in household electrical devices. With the development of the electronic products, more and more products use FR4 material instead of CEM1 material.
Tg means Glass Transition Temperature. For standard PCB, that is TG130, or TG135. High TG material is TG170, which is used in communication products. When the working temperature reaches the melting point, that means the temperature exceeds the Tg value, the status of PCB material will be changed from glassy to liquid, which will destroy the function of PCB board.
1• Place of Origin: Shenzhen, China (Mainland)
2• Brand Name: Linked
3• Number of Layers: 2
4• Base Material: FR4 General TG135
5• Copper Thickness: 1 OZ
6• Board Thickness: 1.6mm
7• Min. Hole Size: 0.3mm
8• Min. Line Width: 7mil
9• Min. Line Spacing: 10mil
10• Surface Finishing: HSAL Lead Free
11• Testing Service: AOI,E-testing,Fly-Probe-Testing
12• Solder mask color: Blue
PCB Product Detail
Product Name | 2 Layer Blue Soldermask PCB |
PCB Spec | 1.6mm, 1oz, Blue soldermask, white legend, HASL Lead Free |
Lead Time | 10 days |
Manfuacturing Standard | IPC Class 2, IPC Class 3 standard |
Test Method | AOI and Flying Probe Test |
FAQs( Frequently PCB fabrication questions from customer)
1) What service does Linked Electronics Co., provide?
At Linked, we provide pcb manufacturing, free sample and pcb
fabrication service, PCBA, SMT and parts sourcing
2) Do you have MOQ quantity?
We accept order with as low as a quantity of 1 (piece or panel).
3) Do you have the capability of manufacturing high frequency
materials? For example Rogers 4003C or Rogers 4350B
Rogers 4003C PCB and Rogers 4350B is within our capabilities, and
we always have that material in stock. And we are happy to make the
Rogers PCBs to you.
4) What file formats do you accept for PCB fabrication at Linked
Electronics?
Gerber and CAM Auto CAD DXF, DWG formats for PCB fabrication files
|
|
