0.057 Inch S1000-2 Material Rigid Flex PCB ENIG Rohs 35um 1OZ LPI Green BGA

Introduction of Linked Electronics, the PCB Manufacture in China

Linked Electronics is one of the leading suppliers of Electronic Printed Circuit Boards in China. Through our rich experience and high competence in PCB manfaacturing, Linked will contribute to make our customers more competitive and valuable on their market.

Rigid flex PCBs are the PCBs which use a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally. It is flexible in shape and light in weight, and used mostly in consumer products, IoT products and so on.

Contact Linked Electronics, the PCB manufacture in China today, and we are happy to help you with your PCB services.

Introduction of Rigid Flex PCB by Linked Electronics, the PCB Manufacture in China

A rigid flex printed circuit board (PCB) is a printed circuit board design that integrates elements from both FR4 rigid PCB and flexible circuits. Rigid flex PCBs are rigid at some points on the board and flexible at others areas. The flexible layers are buried internally and completely penetrate the rigid sections of the PCB

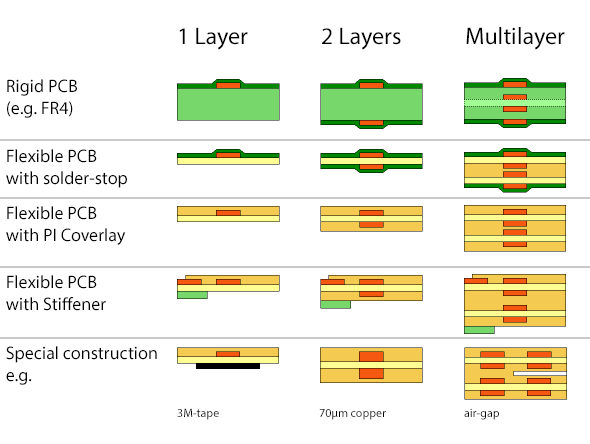

Flex-rigid PCBs are fabricated through orderly and selective layer stackup of rigid and flexible PCBs with plated through holes responsible for connection between layers. Below figure indicates the basic structure of flex-rigid PCB. You can refer to the below picture for rigid flex PCB stack-up.

Due to its unique characteristics, the rigid flex PCB are flexbile in some areas and light weight, it is widely used in consumer electronics and IoT products.

Calculation of Rigid-Flex PCB Pricing by Linked Electronics, the PCB manufacture in China.

Because PCB is customized products, it is rather complicated to calculate the price of rigid flex especially if you are not familar with PCB production. It might a big headache for you to calcuate the price. For a standard PCB price, there involves setup, e-test, unit price and plus international shipping cost.

For cost saving purpose, Linked Electronics advises that limiting the number of flex layers to 1 or 2. FPC cost is much higher than Rigid PCB boards.

Just send us the RFQs,with the PCB quanity, and PCB technique spec, PCB thickness, copper weight, soldermask color and surface treatment, Linked Electronics will reply to you asap with accurate pricing.

PCB Product Show

Classifications of PCB Types

There are several types of PCB boards and each has its own particular manufacturing specifications, material types and usages

Single-layer PCBs, Double-layer PCBs, Multi-layer PCBs, Rigid PCBs, Rigid-Flex PCBs, High-frequency PCBs, Aluminum-based PCBs and Flexible PCBs.

Flexible Payment Method

If you are going to fab a PCB at Linked Electronics, the China PCB manufacture and PCBA service provider. do not worry about the payment method.

We accept Paypal, Visa, Master, TT.

And the good news is that because of worldwide customers around the world, Linked Electronics has the local bank account in UK, Europe, USA, Canada, Singapore, New Zealand and Australia. You can wire your local currency to our local accounts.

Linked Electronics Co., Limited is a China based PCB manufacturer with full in house manufacturing capabilities. We have been in business since 1998 specializing in quick turn, high quality custom PCB fabrication. For more than a decade Linked has been a leading PCB manufacturer in China specializing in Quick-turn Printed Circuit Boards.
